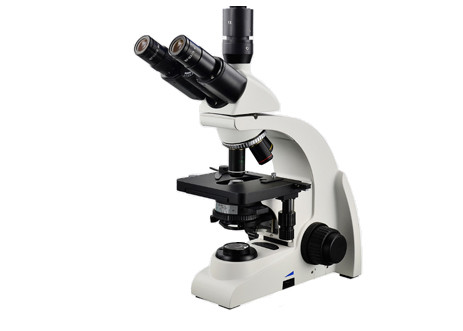

40X 1000X Lab Biological Microscope Trinocular Capillary Microscope 4 Holes

Brand Name : Phidix

Model Number : M12100

Certification : IATF16949，CE

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 1000 PCS/Month

Delivery Time : 15-20 Work Days

Packaging Details : Carton

Color : White

Customization : OEM, ODM

Packing : 1 PC/Carton

Warranty : 1 year

Drawtube : Trinocular

Theory : Biological Microscope

Application : Biological Laboratory

Magnification : 40X-1000X

Nosepiece : 4 Holes

Objectives : 4X/10X/40X/100X

Contact Now

40X-1000X Trinocular Phase Contrast Microscope

M12100 40X-1000X Trinocular Phase Contrast Microscope is a type of compound light microscope used for a wide variety of microscopy applications such as molecular and cellular biology research, clinical and medical diagnosis of health conditions, microbiological research such as bacteriology and parasitology, dog breeding, marine biology for plant and animal cells, dust mite control, paleontology, wastewater management and many more applications.

Phase contrast microscopes are available as simple phase contrast microscopes which include 10x and 40x phase objectives with a pre-centered phase slider or as fully equipped phase contrast microscope which includes a Phase Contrast Condenser and a full complement of phase objectives, 10x, 20x, 40x and 100x Oil Immersion Objective and a centering phase telescope.

Item Description / Value
Head: Siedentopf type head, 360° rotatable, 30° inclined, 23.2 mm tubes. Interpupillary distance is adjustable between 48 to 75 mm. Diopter ±5 adjustment on the left eyepiece.
Eyepieces: High wide field HWF 10x/18 mm eyepiece(s).
Nosepiece: Revolving and reversed ball-beared quadruple nosepiece.
Objectives: Achromatic objective 4x, Achromatic Phase 10x/0.25, 20x/0.40, S40x/0.65 and S100x/1.25 oil immersion objectives. S40x and S100x oil immersion objectives are spring-loaded. Optics are anti-fungus treated and anti-reflection coated for maximum light throughput.
Stage: 141 x 131 mm stage with integrated 78 x 53 mm X-Y double layer mechanical stage. Vernier scale, soft-close removable specimen holder, scratch-resistant.
Focusing: Coaxial coarse and fine adjustments with 100 graduations. Precision 1 µm, 0.1mm per rotation, total travel approximately 15 mm. Supplied with an adjustable rack stop to prevent damage to sample and objectives. Coarse adjustment is equipped with friction control.
Condenser: Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm, swing-out filter holder, and BF position for brightfield contrast.
Illumination: 3W NeoLED illumination. Internal power supply 100-240 V (CE).
Package Contents: Frosted filter, power cord, dust cover, tools, spare fuse, user manual, 5 ml immersion oil.
