Brand Name : Phidix
Model Number : M18100
Certification : IATF16949,CE
Place of Origin : China
MOQ : Negotiable
Price : Negotiable
Payment Terms : L/C, D/A, D/P, T/T, Western Union
Supply Ability : 1000 PCS/Month
Delivery Time : 15-20 Work Days
Packaging Details : Carton
Color : White
Customization : OEM, ODM
Lead-time : 15-20 Work Days
Packing : 1 PC/Carton
Warranty : 1 year
Drawtube : Trinocular
Theory : Metallurgical Microscope
Objective lens : 5X,10X,20X,50X
Magnification : 50X-500X

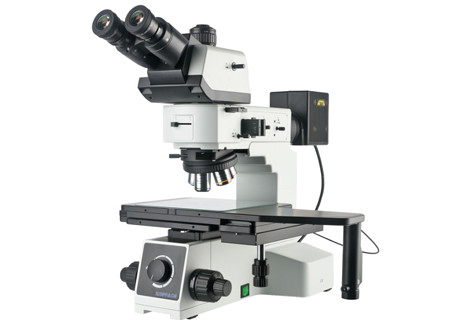

50X-500X Trinocular Bright And Dark Field Metallurgical Microscope
M18100 50X-500X Trinocular Bright And Dark Field Metallurgical Microscope The product could be widely used in various industrial applications with perfect performance.
Item | Description / Value |
Magnification: | 50X,100X,200X,500X |
Optical System: | Infinity Chromatic Aberration Correction Optical System |
Eyepiece: | High Eye Point large Field of View flat Field Eyepiece PL10X22mm |
Objective lens: | LMPL-BD Infinite long Working Distance Bright and Dark Field Metallographic Objective |
Observation Tube: | Adjustable 5-35° inclination angle Three-Way Observation Tube With Infinite Hinge, Inter-pupillary Distance Adjustment:50-76mm,Unilateral Diopter Adjustment:±5 Diopter, Two-level Split Ratio 100:0 or 0:100 |
Objective Lens Converter: | Inverted Bright and Dark Field Five-Hole Converter With DIC Slot |
Coarse and Fine Focusing Mechanism: | Translucent and Reflective Frame, Front low-Hand Position Coarse and Fine Coaxial Focus Adjustment Mechanism. Coarse Adjustment Stroke 33mm,Fine Adjustment Accuracy 0.001mm.With Adjustment Elastic Device to Prevent Sliding and Random Upper limit Device |
Operating Platform: | 6-Inch Three-layer Mechanical Mobile Platform, Low-Hand Position X,Y Direction Coaxial Adjustment, Platform Area 450mm×220mm,Reflected illumination Movement Range:158mm×158mm;Transmission illumination Movement Range:100×100mm,With Clutch Handle, Can Be Used For All Fast Moving Within The Range of Travel, Glass Stage Plate (For Transmission and Reflection) |
Upper Lighting System: | Built-In 100-240V Wide Voltage System,5W Warm Color LED Transmitted Light illumination System, Independent Control of Upper and Lower Light; With Filter Slot and Polarizing Device Slot; With Bright and Dark Field Switching Mechanism, Preset Center, Light Intensity Continuously Adjustable |
Under Lighting System: | Single High-Power 5W Warm Color LED White Light, Continuous Adjustable Light Intensity |
Condenser: | Transmissive Shake-Out Achromatic Condenser (N.A0.9) With Variable Aperture Stop, Center Adjustable |
Polarizer: | Polarizer Insert Plate,360°Rotating Analyzer Insert Plate |
Trinocular Interface: | 0.5X C-mount Interface, Adjustable Focus |
![]() |
