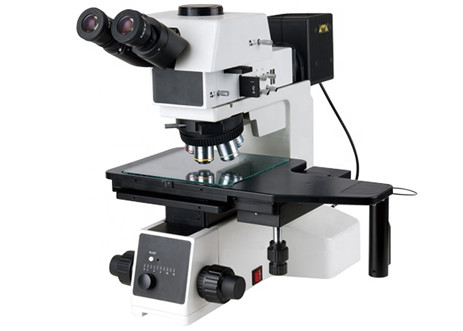

DIC 1000X Reflected Light Microscope Metallurgical Dark Field Illumination Microscope

Brand Name : Phidix

Model Number : M18104

Certification : IATF16949，CE

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 1000 PCS/Month

Delivery Time : 15-20 Work Days

Packaging Details : 1 PC/Carton

Color : White

Customization : OEM, ODM

Packing : 1 PC/Carton

Warranty : 1 year

Drawtube : Trinocular

Theory : Metallurgical Microscope

Lead-time : 15-20 Work Days

Optical System : Infinity Achromatic Optical System

Observation : Light Field, Dark Field, Polarization, DIC

Eyepiece : WF10X/22mm

Objective : 5X/10X/20X/50X/100X

Illumination : Reflected Light And Transmitted Light

Magnification : 50X-1000X

Contact Now

1000X Metallurgical Microscope with reflected light and transmitted light with dark field polarizing DIC

M18104 1000X Metallurgical Microscope with reflected light and transmitted light with dark field polarizing DIC It is a research microscope with Bright field, dark field and polarizing with optional DIC, which can be applied to different industrial fields.

Features:

- The transmitted light and reflected light can be used at the same time.

- It is suitable for PCB cross section analysis (oil layer), coating thickness measurement, material analysis and metal analysis etc.

Item Description / Value
Optical system: Infinity Plan achromatic optical system.
Contrast method: Bright field, polarizing, Dark field, DIC.
View head:

Hinge trinocular, 30 ° inclined, 360° rotating.

IPD adjustment: 54mm~75mm, Diopter adjustment: ±5 diopters, Splitting ratio: 100:0
Eyepiece: High eye level WF PL10 × (Φ22mm).
Objective: Infinity Plan achromatic long working distance metallurgical objective: PlanL 5X, PlanL 10X, PlanL 20X, PlanL 50X, PlanL 100X.
Focusing system:

Coarse and fine Coaxial focusing system.

Tightness and height limitation of coarse regulation are adjustable.

Fine adjustment accuracy: 0.001mm.
Stage:

6 inch double layer mechanical stage.

Stage stroke: 160mm ×160mm.

Right hand control fo X and Y direction. Reflecting metal stage plate.
Illumination:

Reflected illimulation: 100W halgoen lamp, with center adjustable field stop and aperture stop. Brightness adjustable.

Transmitted illimulation: 100W halgoen lamp, with center adjustable field stop and aperture stop. Brightness adjustable.

With filter slot and polarizer slot. With obque illumination shifter.
Polarizing: Polarizer and analyzer.
Condenser: Abbe Condenser, manual. Manual Polarizer.
Camera: Optional.
Power supply: AC200V~240/50Hz~60Hz
